FPGAStudio

By

The first native macOS FPGA IDE application with Yosys and NextPNR as backend is finished. Currently supporting the ICE FPGA family from Lattice Semiconductor.

FPGA resource usage

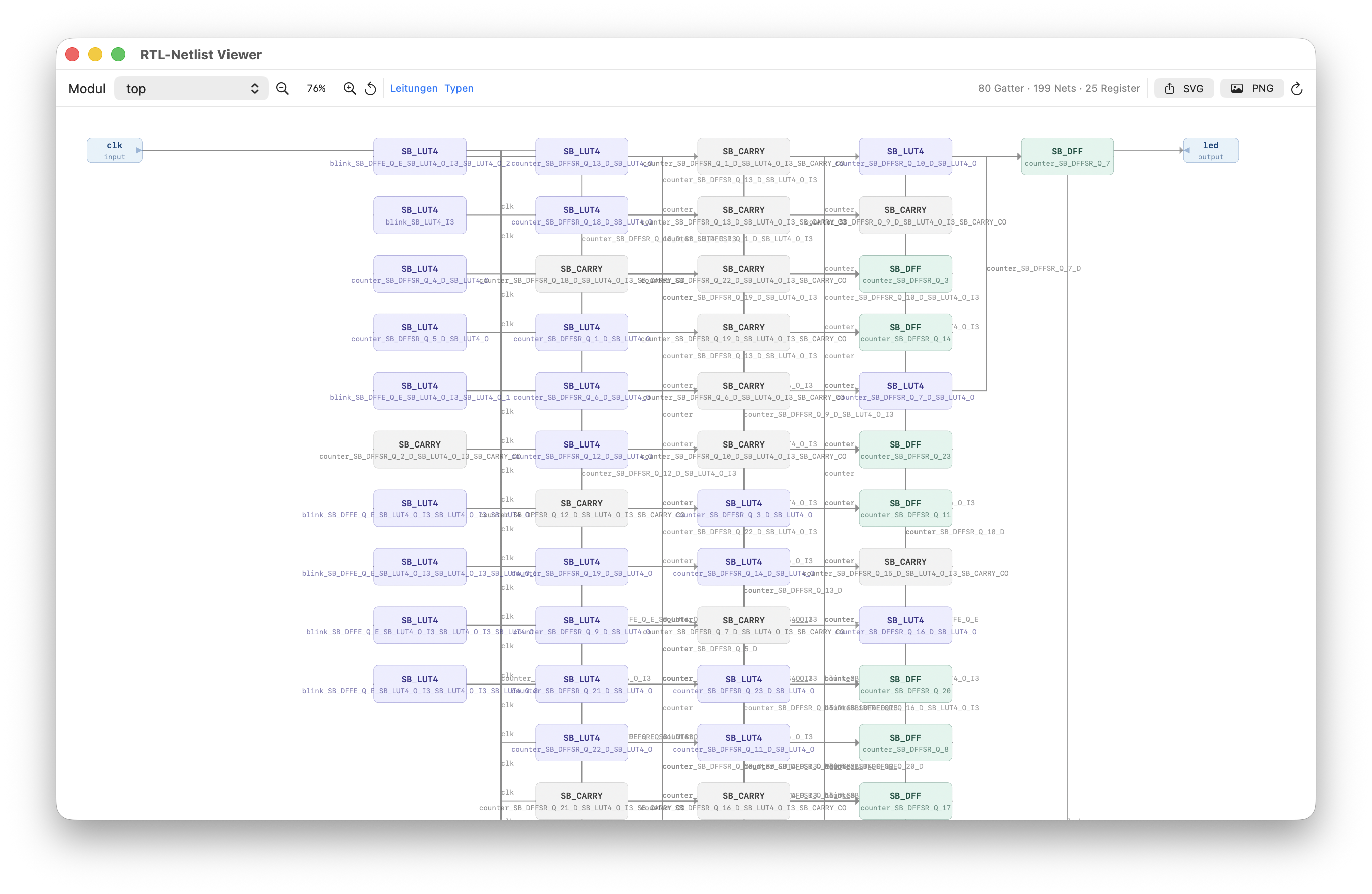

Besides resource usage also a window is implemented which shows the RTL netlist which can be exported as SVG or PNG image:

RTL netlist viewer
